Anatomy
Inside the TransiGo 4000
A full-KYC bank card, issued at the station in 45 seconds. Scroll to tour the kiosk, module by module.
TransiGo: Transit Automation Platform
Flagship transit hardware. Designed and manufactured in India. Proven at Bengaluru Namma Metro since April 2024. 10K+ daily kiosk transactions across 7 stations.
Live at 7 Metro Stations
Currently Deployed
TransiGo 1000
The compact machine in the range, for low to medium traffic stations with essential ticketing needs. The PAX IM30 terminal itself, in a branded surround, with QR ticketing and digital payments in the smallest footprint we build.
- 5" sunlight-readable touch display (PAX IM30)
- QR code ticketing
- UPI payments
- Card network acceptance
- Compact footprint
- 24/7 unattended operation
Suited to metro stations, bus terminals, parking facilities and smaller transit hubs.
Request Deployment Details
Currently Deployed
TransiGo 2000

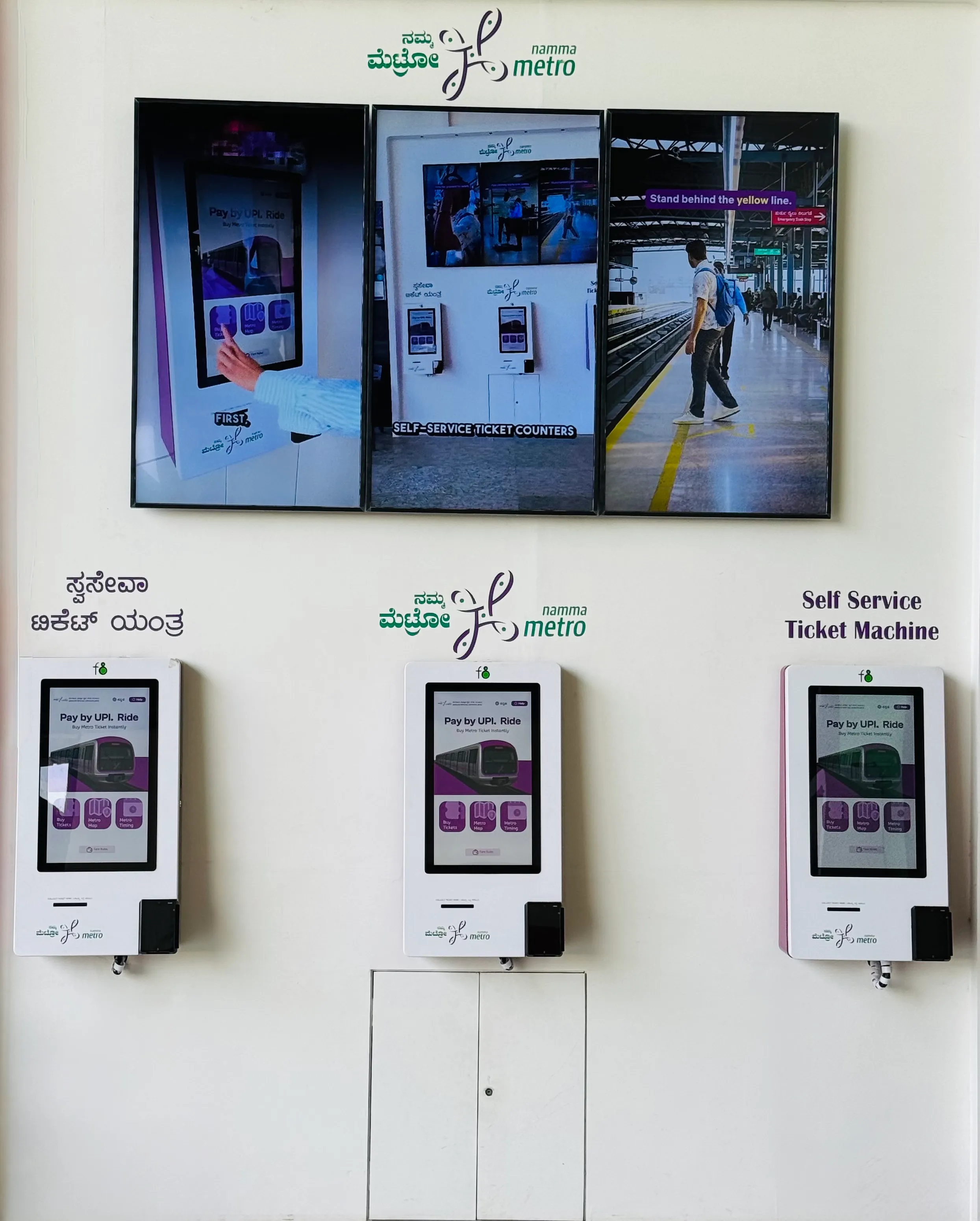

Our 21.5-inch all-digital ticket vending machine delivers seamless QR ticketing, UPI payments, card network acceptance (RuPay, Visa, Mastercard), and NCMC card top-ups and balance checks. In service on Namma Metro's Purple Line since Q1 2025, and on the Yellow Line from its inauguration in August 2025.
- 21.5" Android HD touch screen
- QR code ticketing (BMRCL integration)
- UPI payments (dynamic QR)
- Card network acceptance (RuPay, Visa, Mastercard)
- NCMC card top-up and balance check
- All-digital payments — no cash handling
- Real-time analytics dashboard
- Remote monitoring, diagnostics & OTA updates
Watch Live Demonstration
Live at Namma Metro
Up close

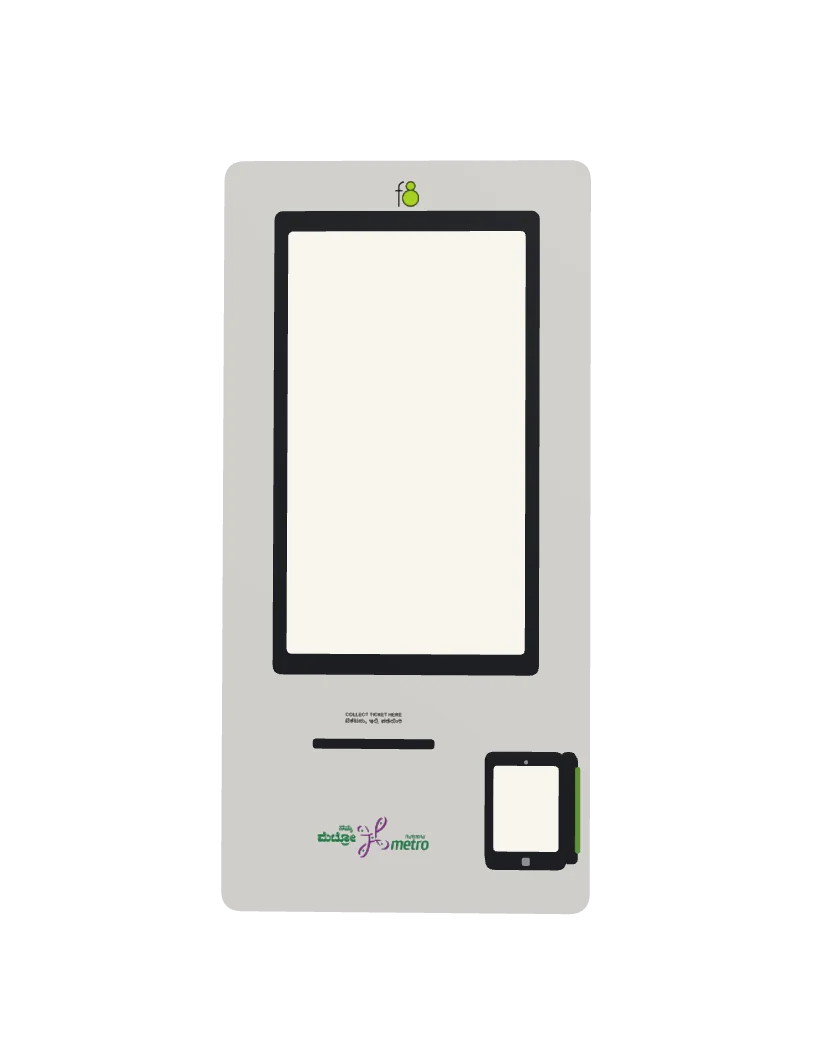

The 2000, in profile
Every photograph of this machine is taken straight on. Scroll to see the profile — the wedge taper and the wall mount that make it a different class of machine from the 4000.
-

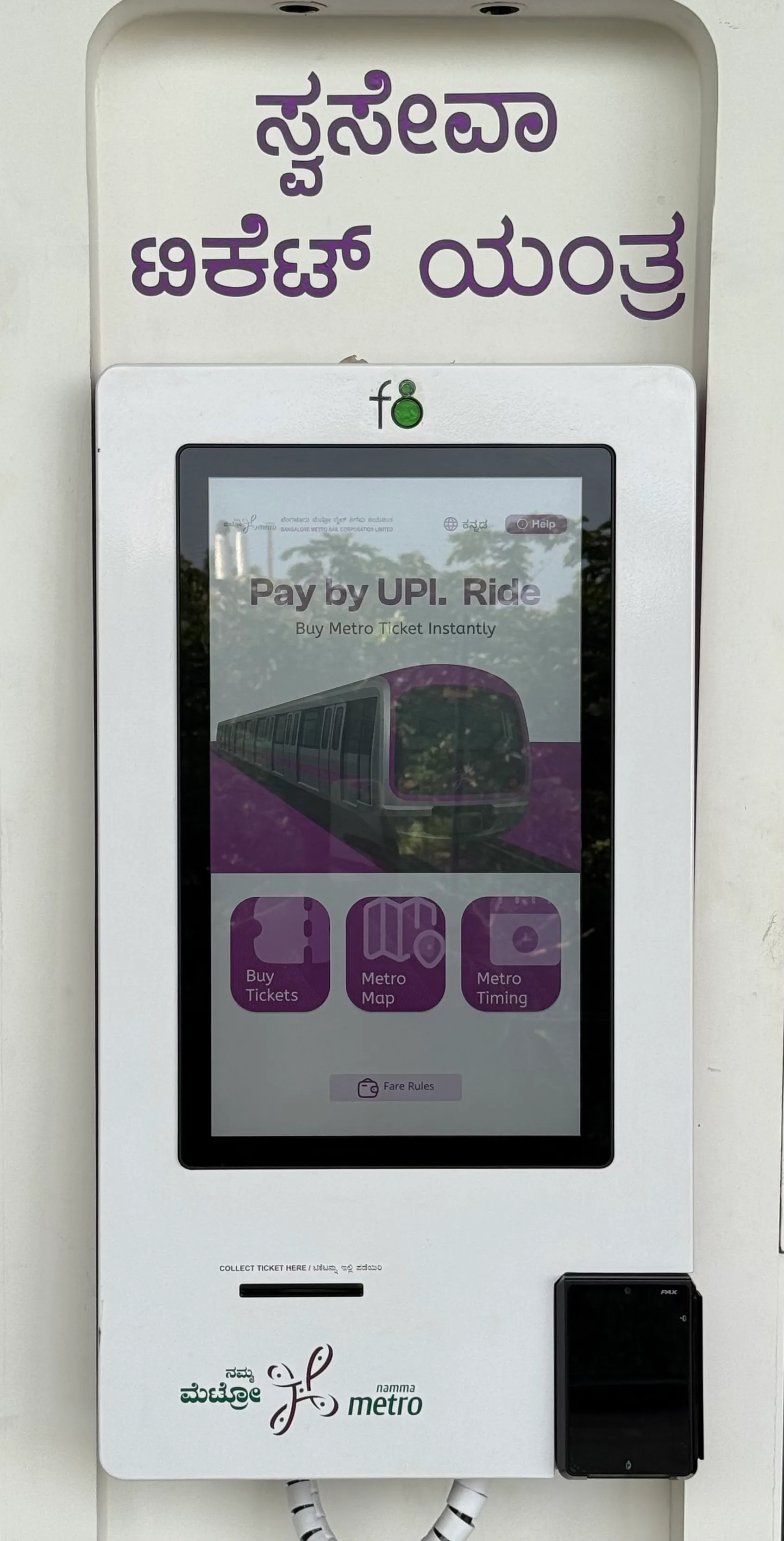

Wall-mounted
The 2000 hangs on the concourse wall rather than standing on the floor — no footprint to allocate, no queue island to build around.
-
All-digital
UPI, RuPay, Visa and Mastercard, plus NCMC top-ups and balance checks. No cash path, so no cash handling and no cash-in-transit.
-
Ticket in hand
A QR ticket prints and feeds out of the slot below the screen. This is the machine PM Modi used to buy a ticket at Ragigudda in August 2025.
Now Live

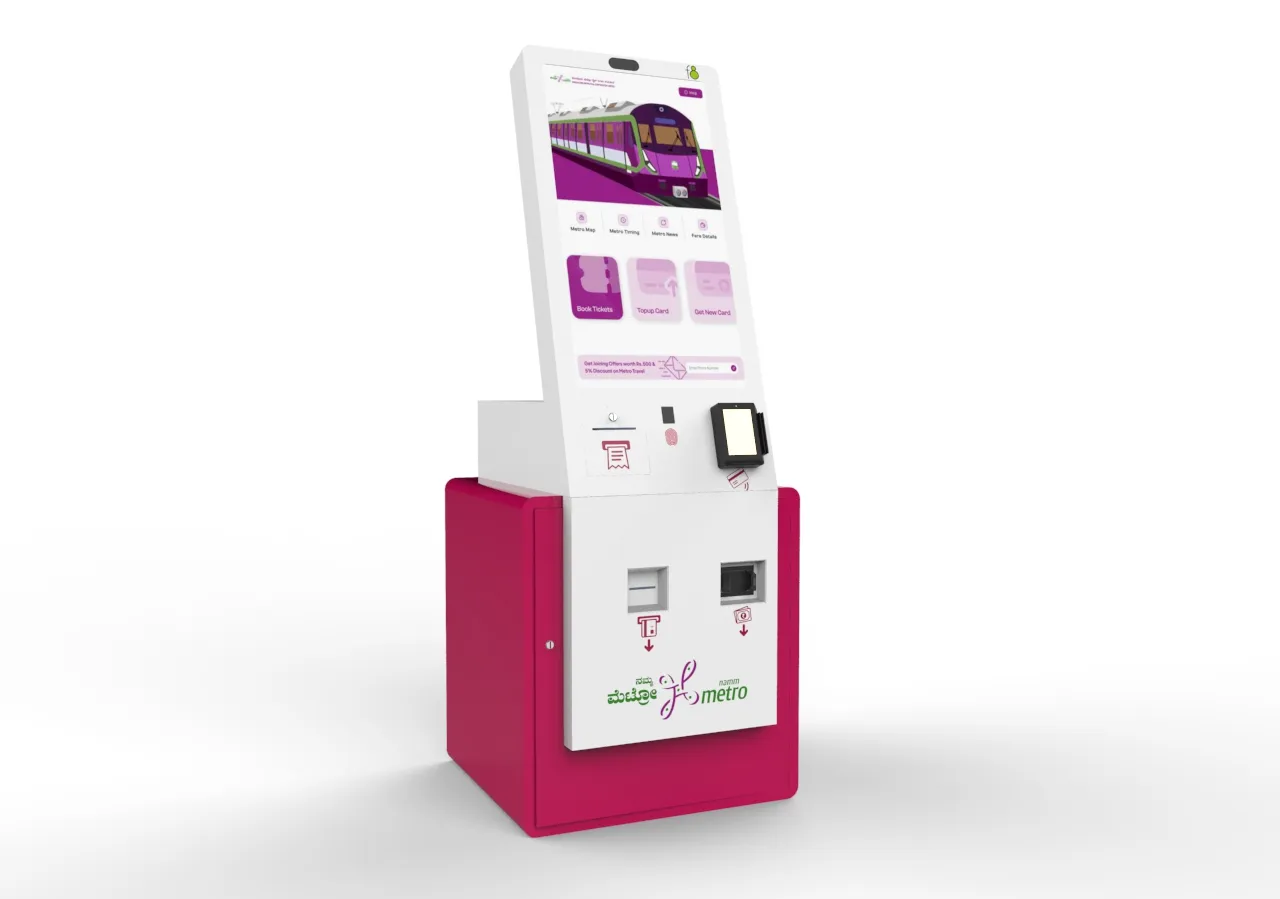

TransiGo 4000
India's most advanced self-service kiosk. Full-KYC onboarding, instant personalised card dispensing, integrated payments, and cash handling — in one machine. Multi-bank, multi-product, multi-BIN. 45 seconds, end to end.
- 32" OTL325 Full HD PCAP touch display
- Mantra MFS110 STQC-certified biometric scanner
- Evolis KC Essential printer (4-hopper, multi-BIN)
- HD camera with liveness detection
- PAX IM30 payment terminal (PCI PTS 6.x)
- Cash acceptor + recycler module
- RK3588 SoC (8-core, 6 TOPS NPU, 8GB DDR4, 512GB storage)
- Fanless design, stainless steel enclosure
Watch Product Brochure
Live at Namma Metro

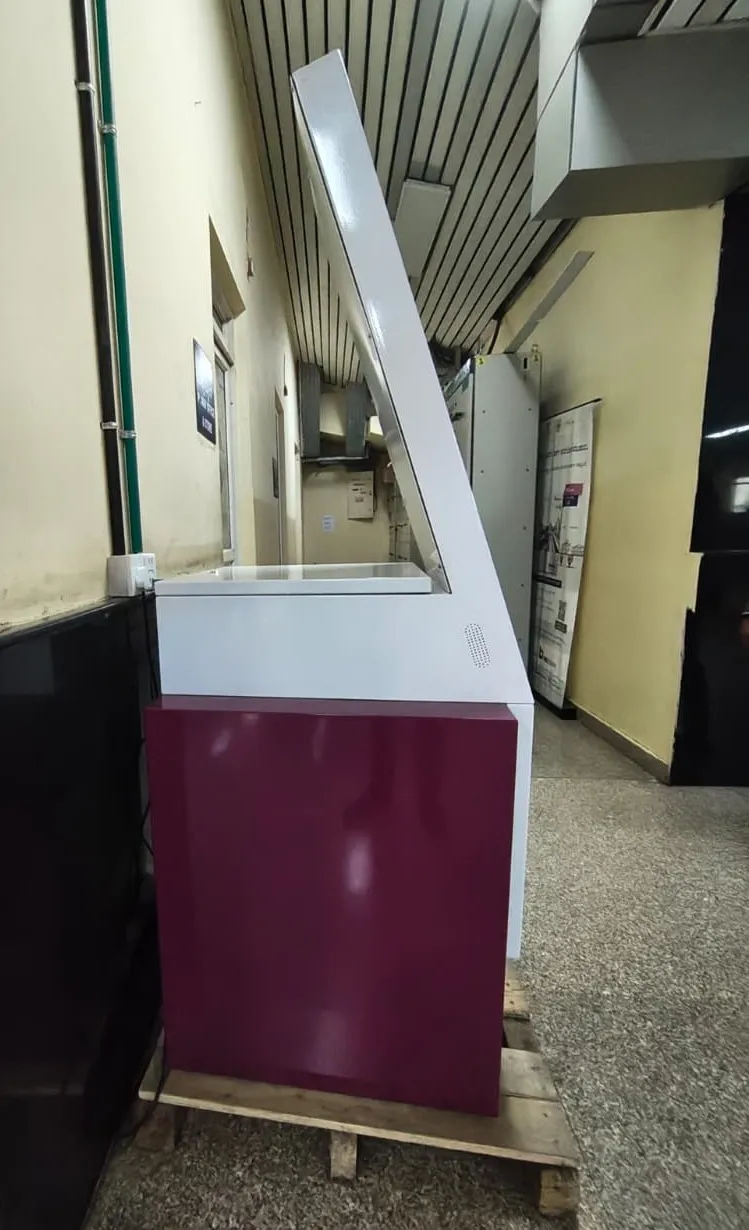

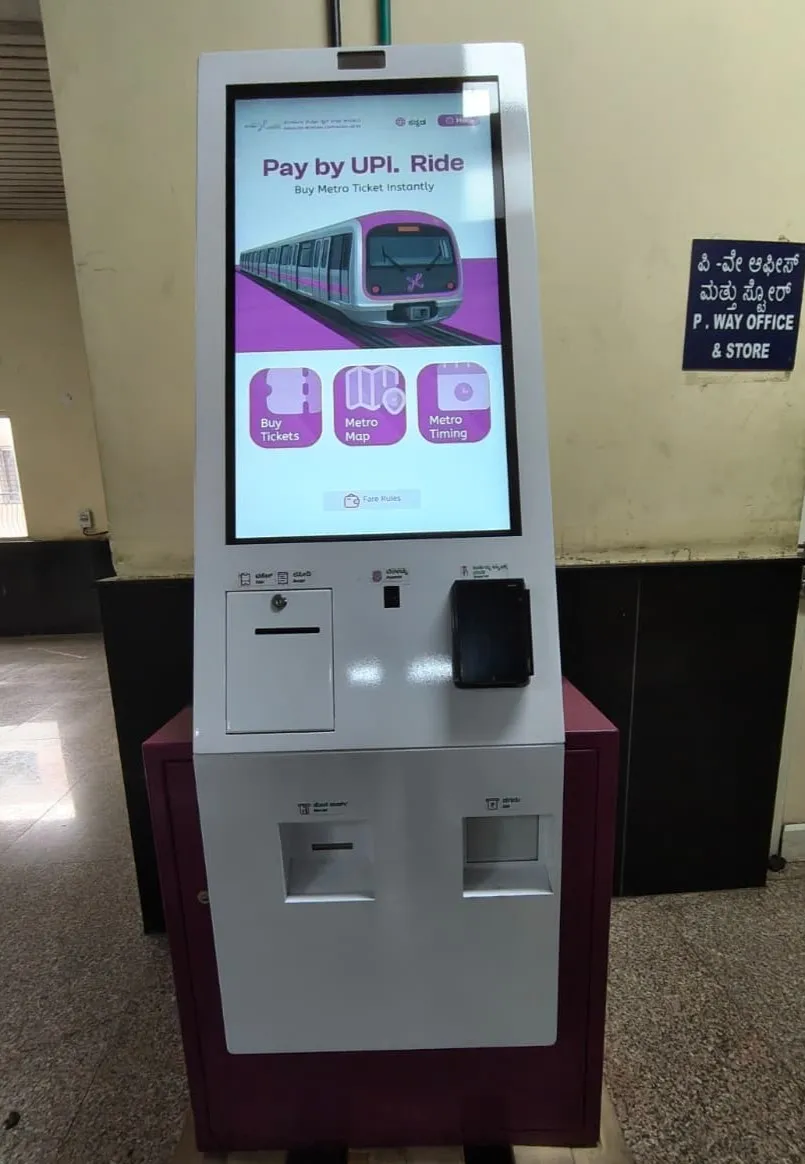

The TransiGo 4000 in service

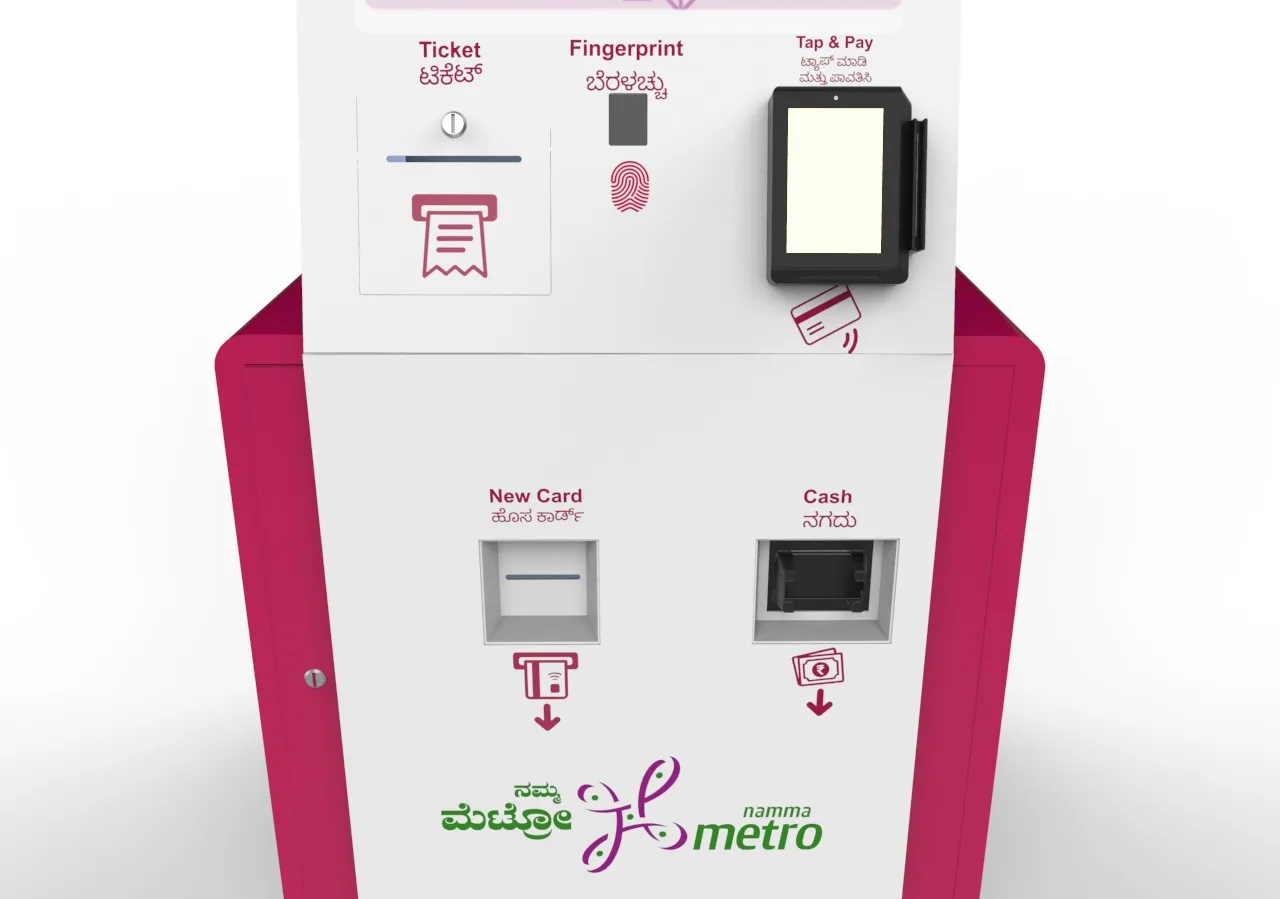

Inside the TransiGo 4000
Interface
32-inch touchscreen
Full HD PCAP multi-touch at 500 nits, on an impact-resistant panel. It carries the rider through the whole transaction without a counter.
Identity
Biometric scanner
STQC-certified biometric capture — the identity step, handled at the machine instead of a branch counter.
Output
Ticket printer
Tickets print from an 80mm thermal head and feed out through the slot beside the card recess.
Payments
Payment terminal
Chip, contactless and magstripe on one terminal — PCI PTS 6.x SRED certified, EMV L1 and L2 compliant, rated IP65 weatherproof.
Issuance
Card printer
A full-KYC bank card, printed here by dye-sublimation at 300 DPI, edge to edge, and issued in 45 seconds. No branch visit.
Cash
Note acceptor
Spectral imaging checks each note for genuineness in two seconds, so riders paying in cash get the same journey as everyone else.
Security
Cash vault
Validated notes stack below, 500 to 2,200 of them. The body around them is tamper-proof steel, under HD video audit and hardware-based encryption.
Deployed
Built for Indian metros
AFCS-compliant end to end: identity, payment, card and ticket in one unattended machine.
Tailored to your network
Every metro system has its own story. TransiGo is modular, so it integrates with the ticketing, recharge and smart-card infrastructure you already run.
Instant card issuance
- Full-KYC capture at the machine
- On-kiosk personalisation and encoding
- Issued in 45 seconds, no branch visit
Unattended payments
- UPI, QR, NFC, cards and cash
- RuPay, Visa and Mastercard acquiring
- NCMC and closed-loop cards
WhatsApp workflows
- End-to-end journeys over WhatsApp
- Document collection and status updates
- Video KYC without an app download
Bank and OEM integration
- SDK-ready for issuing banks and acquiring switches
- Aadhaar and India Digital Stack
- APIs across kiosk, web and mobile; FAT/SAT ready
Why TransiGo?
AFCS Compliant
Fully compliant with Automatic Fare Collection System standards for Indian metro networks.
Multi-Modal Payments
UPI, cards, NCMC and cash across the range — every payment method your riders already carry, on one platform.
Built for Unattended
Sealed for open concourses and rated for 24/7 unattended operation, with remote monitoring, diagnostics and OTA updates.
Proven at Scale
10K+ daily kiosk transactions across 7 stations at 99.9% uptime, running at Bengaluru Namma Metro since April 2024.
Beyond Metro
TransiGo's platform extends beyond metro. Bus rapid transit, intercity rail, airport people movers, toll plazas. Same hardware. Same software. Same managed operations. Tell us the use case.
Tell Us Your Use CaseSee TransiGo in Action
7 stations, running since April 2024. 10K+ daily kiosk transactions. Visit our live deployment at Bengaluru Namma Metro or schedule a demo at our experience center.
